When a Checkout Crosses the Calibration Due Date

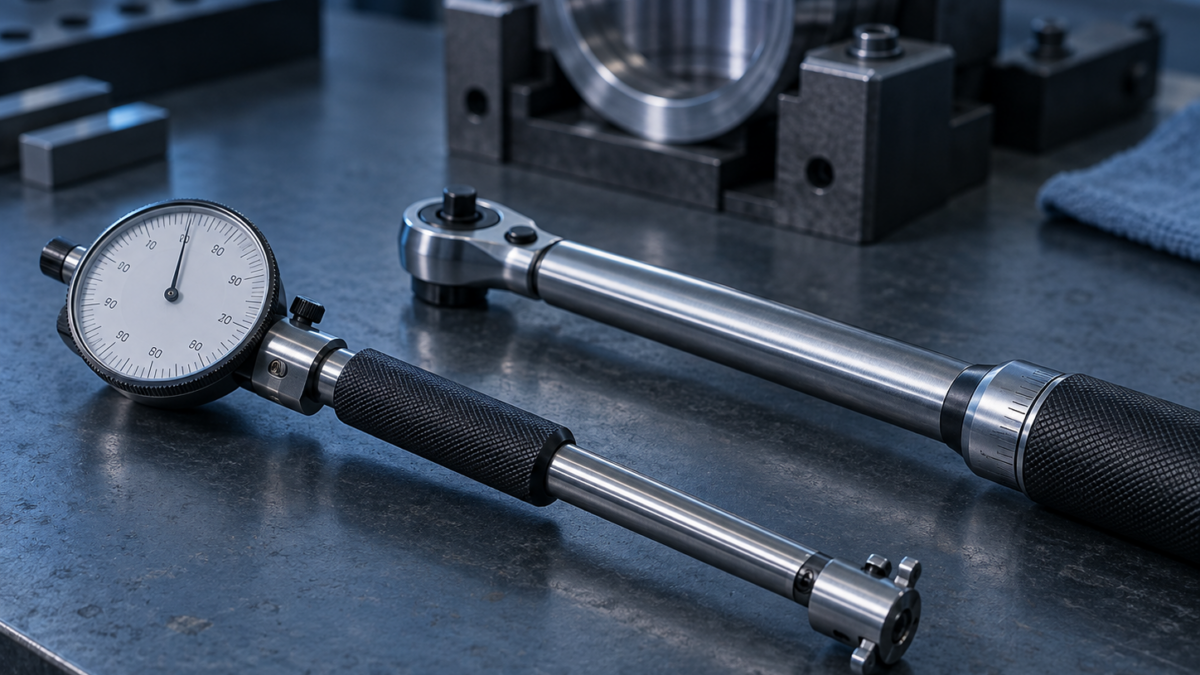

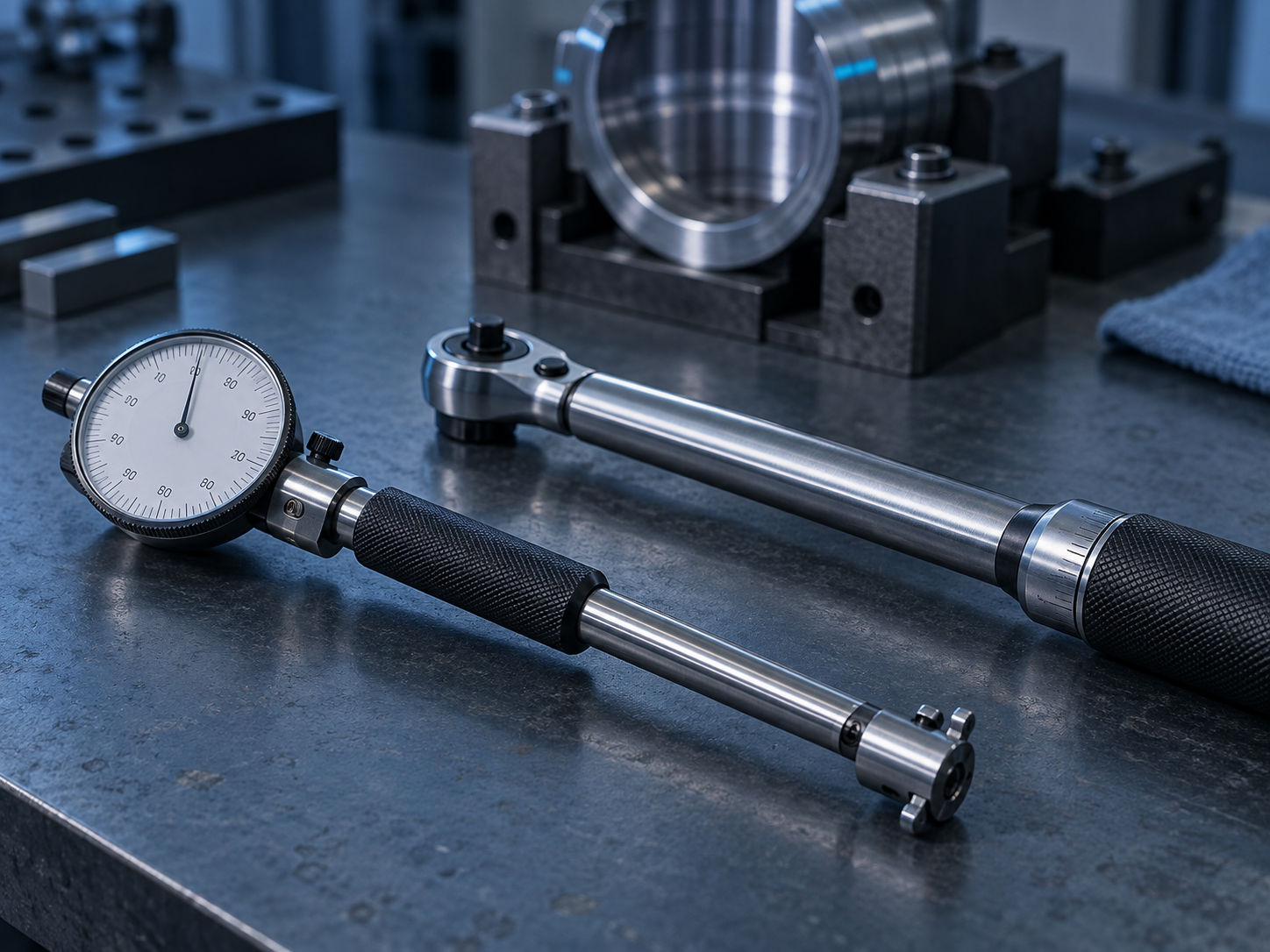

A department manager approves a checkout on a Monday: a dial bore gauge, booked out to a machinist for a six-week production run on a batch of hydraulic cylinders. The request looks routine. The gauge is in tolerance, the paperwork is clean, the operator is qualified. What nobody looks at is the calibration due date — the 14th of next month — which lands squarely in the middle of that six-week window. On the day it comes due, the gauge is not in the crib where the overdue report can see it. It is on the shop floor, in a machinist’s hand, measuring bores that will be signed off as conforming.

That is the quiet failure this article is about. Not a gauge that was never calibrated, and not one that failed as-found. A perfectly good instrument that slipped overdue while in someone’s possession, and kept certifying parts for days or weeks before anyone noticed. By the time it surfaces — usually when the gauge finally comes back and hits the return scan, or worse, when an auditor pulls the calibration record against the production dates — you are no longer managing a schedule. You are managing a containment.

Why this breaks traceability, precisely

ISO 9001:2015 clause 7.1.5.2 requires that monitoring and measuring resources be verified or calibrated at defined intervals, be identifiable as to calibration status, and be safeguarded from adjustments that would invalidate their status. IATF 16949 and AS9100 inherit and tighten the same requirement. The clause is not satisfied by a gauge that was in calibration when it left the crib. It is satisfied by a gauge whose status is known and valid at the moment of use.

When a checkout window crosses the due date, the measurement result loses its traceability chain the instant that date passes. Every part measured after that point was accepted by an instrument with no valid calibration status. As-found data from the eventual recalibration then decides how far back the damage runs: if the gauge comes back out of tolerance, you cannot bound the impact to a clean date, because the instrument was in continuous use across the boundary. You are into a reverse-traceability recall on every part it touched in that window — the exact outcome the calibration interval exists to prevent.

The mistake most systems make is treating checkout and calibration as two separate ledgers. The crib logs who has what. The calibration schedule logs what is due when. Nobody joins the two at the one moment where the join matters: approval.

Catch the collision at approval, not at audit

The fix is a validation that fires when the checkout is requested, not a report you read afterward. At the point of allocation, the system already knows two dates it rarely compares: the expected return or the booking’s end date, and the instrument’s next calibration due date. If the due date falls on or before the expected return, the checkout is a known future non-conformance the moment you approve it.

In PrüfDesk, that comparison runs automatically because both facts live in one record. Every instrument carries an auto-calculated calibration due date derived from its last calibration and its assigned interval. Every checkout and permanent allocation carries a window and a holder. When the requested window crosses the due date, the tenant’s configured overdue policy decides what happens next — and this is where the per-tenant control earns its place:

• Hard block: the checkout cannot be approved for a window that extends past the due date. The manager is forced to either shorten the booking, swap in an instrument with a later due date, or pull the gauge in for calibration first.
• Soft warning: the approval proceeds, but the collision is recorded and flagged, so the return-by-due-date obligation is explicit and owned, not assumed.

A calibration lab running to ISO/IEC 17025 will set hard block on its reference standards without hesitation. A production floor with hundreds of general-purpose calipers may prefer soft warning on low-risk items and hard block on the gauges that certify safety-critical characteristics. The point is that the rule is a deliberate, documented choice per tenant and per risk — not a default you discover you never had.

A worked example

Take that dial bore gauge. Last calibrated 15 March, twelve-month interval, so due 15 March next year — except this unit is on a six-month interval because it lives on a high-throughput line, making it due 15 September. The checkout is requested on 1 September for a run ending 12 October. The window is 41 days; the due date sits on day 15.

Under hard block, the approval stops. The manager sees the specific dates in the denial: window to 12 October, due 15 September. The realistic responses are all good ones — book a shorter window and re-checkout after recalibration, substitute a sister gauge due in December, or expedite the calibration now while nothing is riding on it. Under soft warning, the approval goes through with a recorded flag and a return-by 14 September obligation attached to the holder. Either way, the collision was surfaced on 1 September, when it was a scheduling decision, instead of on 20 October, when it is a batch of suspect cylinders.

What survives the audit

The value here is not only prevention; it is evidence. Because the possession audit trail and the calibration status are the same system, the record shows the checkout, the window, the due-date check that ran at approval, the policy that applied, and the return — a continuous chain from allocation to calibration. When an auditor asks how you ensure instruments are not used past their due date while on loan, you do not describe a good intention. You show the control firing and the trail it left.

A short checklist for your own process

• Does your checkout approval compare the booking’s end date against the instrument’s calibration due date — automatically, every time?
• Is your overdue rule (hard block vs. soft warning) a documented per-instrument or per-risk decision, not an accident?
• Can you produce, for any past checkout, the possession trail and the calibration status that applied across the whole window?
• When a gauge does come back overdue, can you bound the affected parts to exact dates from one record, or are you reconstructing from two?

Answering the obvious objection

"We already run an overdue report every morning." You do, and it is necessary — but a daily report catches the gauge after it has gone overdue, and only if it is somewhere the report can act on it. A checked-out instrument on the floor is precisely the case the morning report is worst at: the status changed while the gauge was out of reach, and the parts measured in the gap are already made. The overdue report is your safety net. The approval-time check is the thing that keeps you off the net in the first place. They are not substitutes; the report tells you what is overdue, the check stops what will be.

None of this requires heroics from the person approving the checkout. It requires that the two facts already sitting in your system — when the gauge is due, and how long it is going out — be compared at the one moment a human is making the decision. If you would like to see how PrüfDesk runs that check at approval and keeps the possession trail intact for the audit, it is worth a look at your own instrument list and your own overdue rule.
