“Reference Only” Gauges Used for Acceptance: 7.1.5 Fix

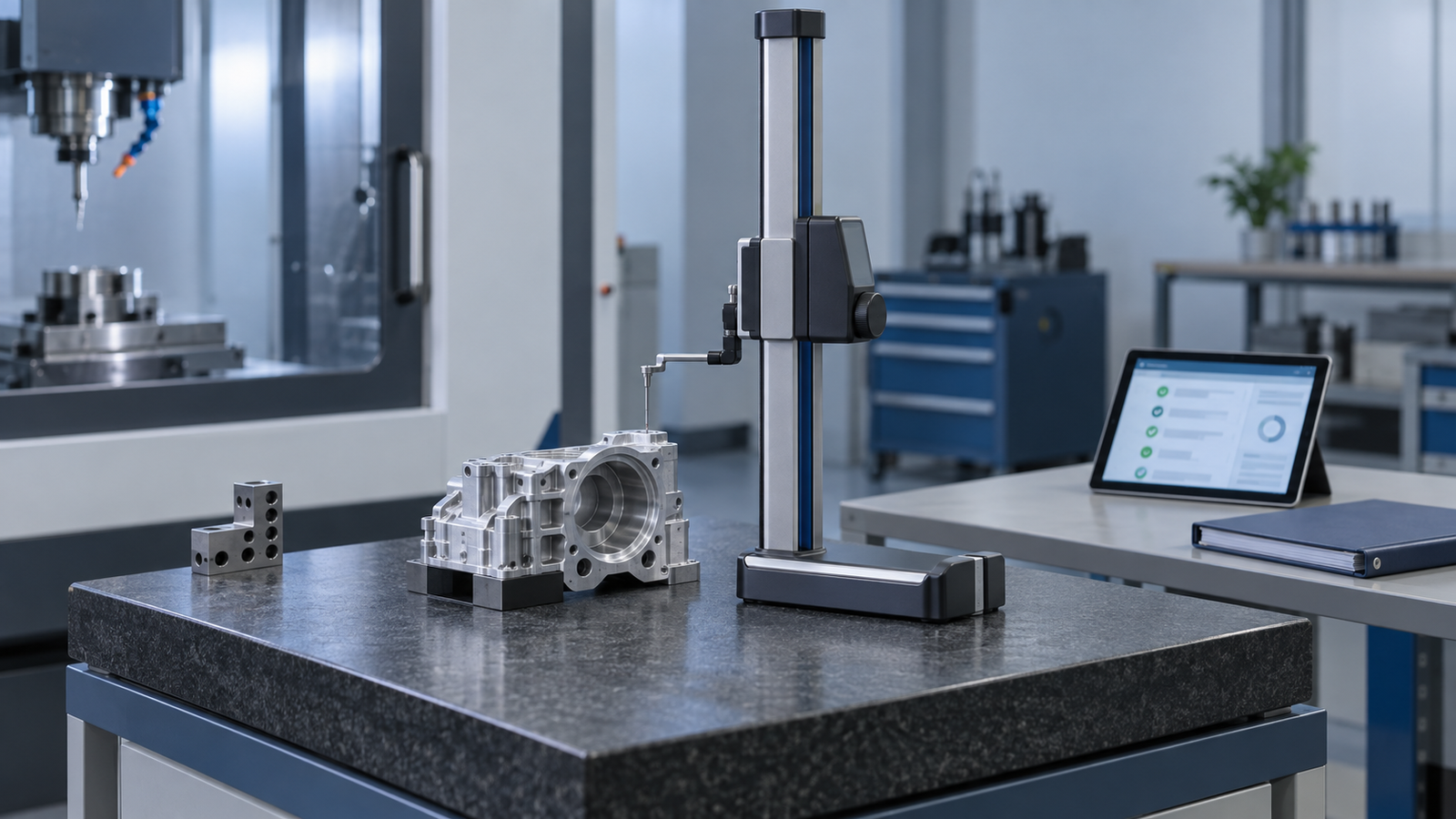

You are tracing one inspection record backwards as a dry run for next year’s audit. The characteristic is a bore depth of 24.00 ±0.05 mm. The result is in tolerance and the box says Accept. The instrument column says HG-07. You walk to the cell and find HG-07: a height gauge in good condition with a yellow sticker on the column that reads "For reference only — not calibrated."

Nobody did anything malicious here. The calibrated height gauge was out at the lab for two weeks, the second shift needed something to measure with, and HG-07 was sitting there. Still, the label and the record now contradict each other. An auditor who pulls that record will find the contradiction the same way you did.

This article covers that one problem: instruments deliberately excluded from calibration that end up being used to decide conformity. The fix comes down to a single test that you can run against your own register and records.

What 7.1.5 actually requires, and what it doesn’t

Read the clause, not the folklore.

7.1.5.1 requires you to provide the resources needed for valid and reliable results when monitoring or measuring is used to verify that products and services conform. Those resources must be suitable for the type of measurement and maintained so they stay fit for purpose, and you retain documented information as evidence of that fitness.

7.1.5.2 applies when measurement traceability is a requirement, or is considered by the organization to be an essential part of providing confidence in the validity of measurement results. In that case the equipment is calibrated or verified (or both) at specified intervals or before use, against standards traceable to international or national standards. It is also identified so its status can be determined, and safeguarded from adjustment, damage or deterioration. If equipment turns out to be unfit, you determine whether earlier results were affected and act on that.

Two points follow.

1. The standard does not require you to calibrate everything. "Reference only" (or "no calibration required") is a legitimate status. A steel rule used to rough-position a fixture, or a thermometer on a break-room wall, does not need a traceable certificate.
2. The trigger is use, not label. Once a result from an instrument is used to verify conformity, that instrument falls under 7.1.5.1. If traceability is required or essential for that result, it also falls under 7.1.5.2. A sticker does not change what the record shows the instrument was used for.

On the 2026 edition: ISO 9001:2026 was published in September 2026, and the transition runs to 30 September 2029 under Global Accreditation Cooperation (the successor to IAF). Global ACI’s published summary of key changes does not list clause 7.1.5. Some consultancy pages still quote draft-stage (DIS) rewording for this clause. Check your own copy of the published standard and confirm with your certification body before you rewrite procedures. Either way, auditors will keep sampling 7.1.5, because that is where product-conformity evidence lives.

Why auditors find this so reliably

One auditor’s published list of common 7.1.5 findings puts "reference only" labels that need justification among the recurring minor nonconformities. That matches field experience, and the mechanics explain why it keeps happening:

• The label sits on the instrument, but the decision sits in the record. Auditors sample records first and work back to the equipment. A label tells them nothing about how the instrument was used.
• Inspection forms usually accept any instrument ID. If the field is free text, nothing stops someone from entering an uncalibrated instrument.
• Substitution happens under pressure. The calibrated unit is away, lost or overdue, and the reference unit is the same model sitting within reach.
• Reference-only instruments are often missing from the register. If HG-07 has no register entry, you cannot show where it was, who had it, or when. That makes the impact assessment impossible to bound.

The one test: does any result from this instrument feed a conformity decision?

Apply this to every instrument currently marked reference only. "Conformity decision" covers more than final inspection.

| Use of the result | Conformity decision? | Control needed |
|—|—|—|
| Accept/reject on an inspection record, FAI or PPAP layout | Yes | Calibrate or verify: 7.1.5.2 |
| In-process check that is the only verification of a characteristic | Yes | Calibrate or verify: 7.1.5.2 |
| Process setting where a calibrated check verifies the characteristic later | Usually no | Document the downstream verification as your justification |
| Rough positioning, sorting before measurement, orientation | No | Reference-only status, identified, justified |
| Environmental readings that a procedure says must be in range before measuring | Often yes | Decide and record it; don’t leave it to habit |

The middle rows are where judgement comes in. If an in-process check with a reference gauge is backed up by a calibrated final inspection, write that down. That written justification is what the auditor will ask for.

Worked example: HG-07 and three weeks of second shift

Go back to the bore depth. This is how to close it out without overreacting or underreacting.

1. Bound the exposure. Find which records cite HG-07 and over what period. Suppose it was used on second shift for the three weeks the calibrated unit was away. You need the date range, the part numbers and the quantities. If HG-07 is in your register with a possession history, this takes minutes. If it isn’t, you are interviewing shift leads and reconstructing from memory, and the auditor will see that.

2. Establish fitness after the fact. Have HG-07 calibrated now and record the as-found condition before any adjustment. If the as-found error is small relative to the ±0.05 mm tolerance, the measurement uncertainty is adequate for the decision, and the gauge wasn’t damaged or relocated in between, you have objective evidence that the accepted results were valid. Treat it as you would an out-of-tolerance impact assessment under 7.1.5.2 and record the reasoning.

3. If the as-found result is poor, the earlier accept decisions are suspect. That means reinspection where parts are still accessible, and the containment and customer-notification route your nonconformity process defines for anything shipped.

4. Fix the cause, not the sticker. Decide whether HG-07 should become a calibrated instrument permanently, since it has now shown it gets used for acceptance. Otherwise, remove it from the cell and make the substitution path legitimate: a calibrated spare, or a rule that inspection waits.

Notice what this example doesn’t do. It doesn’t calibrate every reference instrument in the plant. It treats one misuse as evidence of a gap in control.

The objections you’ll hear

"Operators know not to use reference gauges for acceptance." Then the records will confirm it. Checking them is cheap, and if one record says otherwise, the training argument no longer holds.

"It’s the same model as the calibrated one." Same model isn’t the same instrument. 7.1.5.2 asks for the status of this unit, and that status is what the sticker records.

"Let’s just calibrate everything." This is defensible for small fleets, but it costs money and hides the instruments that really matter. Classifying by use is a sounder answer, and auditors respect it when it’s written down.

Automotive note. IATF 16949 7.1.5.2.1 expects calibration/verification records for gauges and measuring equipment needed to show conformity, including employee-owned equipment. That makes undocumented substitution harder to defend there. A second edition of IATF 16949 is reported to be in development, so confirm current expectations with your certification body.

Self-check you can run this week

• List every instrument marked reference only or no calibration required. If they aren’t all in your register, that’s the first gap.
• For each one, record its intended use and the justification in one sentence.
• Search inspection records, check sheets and control plans for those IDs. Any hit on an accept/reject decision needs action.
• Check whether inspection forms restrict which instruments can be entered, or accept free text.
• Confirm that reference-only instruments are physically distinguishable and not stored alongside calibrated equivalents at the point of use.
• Define what happens when a calibrated instrument is away: a spare, a wait, or an approved deviation.
• Re-check after your next calibration-lab dispatch, because that’s when substitution happens.

Where PrüfDesk fits, and where it doesn’t

PrüfDesk manages the calibration records layer. Register every instrument, reference-only units included, so each one has an identity and a status. Calibrated units get auto-calculated due dates, as-found/as-left results with certificates, reusable procedure templates you can override per unit, and hard-block or soft-warning rules for overdue equipment. The check-out and allocation audit trail records who had which instrument, where, and when, which is the data you need to bound an exposure like HG-07’s. Audit-ready PDF reports pull it together.

It does not hold your inspection records, write your justification policy or certify anything. It is not a full QMS. Whether a result fed a conformity decision is still an engineering judgement, and that judgement belongs to you.
